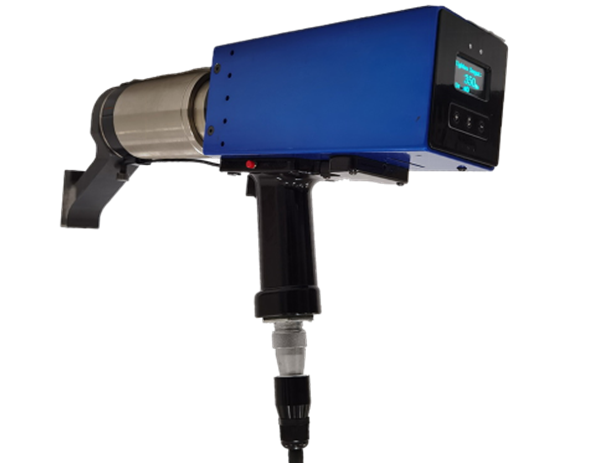

JHSEW-TS transducer series

Description

The above parameters are subject to change. The actual conditions prevail. The weight does not include the weight of the reaction arm.

Programmable preset torque value with torque and angle control

Accuracy ± 1%

Integrated AC servo motor with power box (200x120x75mm) and 5m cable

Model	Min(N.m)	Max(N.m)	S	D	L1	L2	L3	H	W	R1	R2	R3	Weight	Speed
Model	Min(N.m)	Max(N.m)	S	D	mm								（Kg）	rpm
JHSEW-TS-05S	100	500	3/4＂	65	417	209	46	223	89	34	56	43	7.5	19
JHSEW-TS-10S	100	1000	3/4＂	78	422	209	48	223	89	34	62	50	8.6	8.4
JHSEW-TS-16S	200	1600	1＂	78	464	209	60	223	89	36	70	58	9.2	5.6
JHSEW-TS-20S	400	2000	1＂	78	464	209	60	223	89	36	70	58	9.2	4.5
JHSEW-TS-30S	500	3000	1 ＂	88	465	209	80	223	89	46	80	70	11.3	2.9
JHSEW-TS-40S	700	4000	1-1/2＂	98	479	209	80	223	89	46	80	70	12.6	2
JHSEW-TS-60S	1000	6000	1-1/2＂	113	509	209	95	223	89	55	90	80	15.6	1.4
JHSEW-TS-80S	1200	8000	1-1/2＂	120	519	209	95	223	89	55	90	80	20	1.2
JHSEW-TS-100S	2000	10000	1-1/2＂	128	533	209	110	223	89	67	118	90	23.9	1.1
JHSEW-TS-120S	3000	12000	1-1/2＂	128	533	209	110	223	89	67	118	90	23.9	1
