JHBEW-TS transducer series

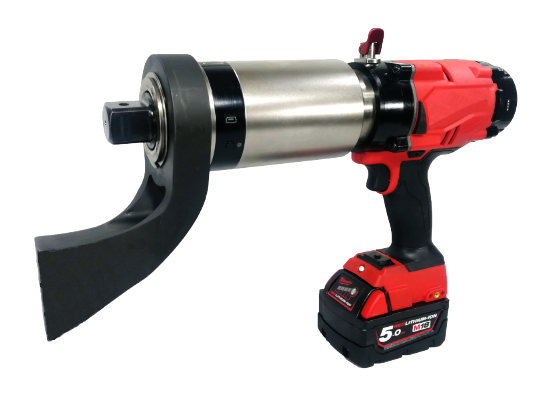

Battery torque wrench

Your current location：Home >> Bolting Tools >> Battery torque wrench

Description

1.Driven by a new modern brushless motor: The JHBEW reaches torques very precisely and efficient. Even when the battery is low.

New modern brushless motor have a better efficient power output than existing competitiors

2.High accuracy of +/-5%, recalibration system makes tool more accurate. Programmable preset torque settings

3.Numerous boltings: The powerful 18V 5.0Ah battery reaches up to 300 boltings per battery charge. We also deliver a second battery pack with the multiplier. 9.0Ah battery optional

4.Redlithium battery packs help bolting more nuts

5.LCD digial display.Adjusting torque with every 10 Nm

6.Wireless control optional, data recording system up to 1000 numbers of bolting job

7.Optional Transducerized system. Output shaft with transducerized make torque output accurancy less than +/-2%

Model	Min torque(N.m)	Max torque(N.m)	S	D	L2	L1	H1	L4	W	R1	R2	R3	L3	weight	Max speed
					mm									（Kg）	rpm
JHBEW-TS-03S	80	300	3/4＂	71	163	310	260	110	80	30	43	40	43	5.7	25
JHBEW-TS-05S	100	500	3/4＂	71	163	310	260	110	80	34	56	43	46	5.7	22
JHBEW-TS-10S	100	1000	3/4＂	78	163	355	260	110	80	34	62	50	48	6.3	8
JHBEW-TS-16S	300	1600	1＂	78	163	364	260	110	80	36	70	58	60	7.2	5.3
JHBEW-TS-20S	400	2000	1＂	78	163	364	260	110	80	36	70	58	60	7.3	4.2
JHBEW-TS-30S	500	3000	1＂	88	163	365	260	110	80	46	80	70	80	8.6	2.8
JHBEW-TS-40S	700	4000	1-1/2＂	98	163	380	260	110	80	46	80	70	80	10.8	2.4
JHBEW-TS-60S	1000	6000	1-1/2＂	113	163	439	260	110	80	55	90	80	95	14.9	1.4
JHBEW-TS-80S	2000	8000	1-1/2＂	120	163	463	260	110	80	55	90	80	95	19.5	1.1
